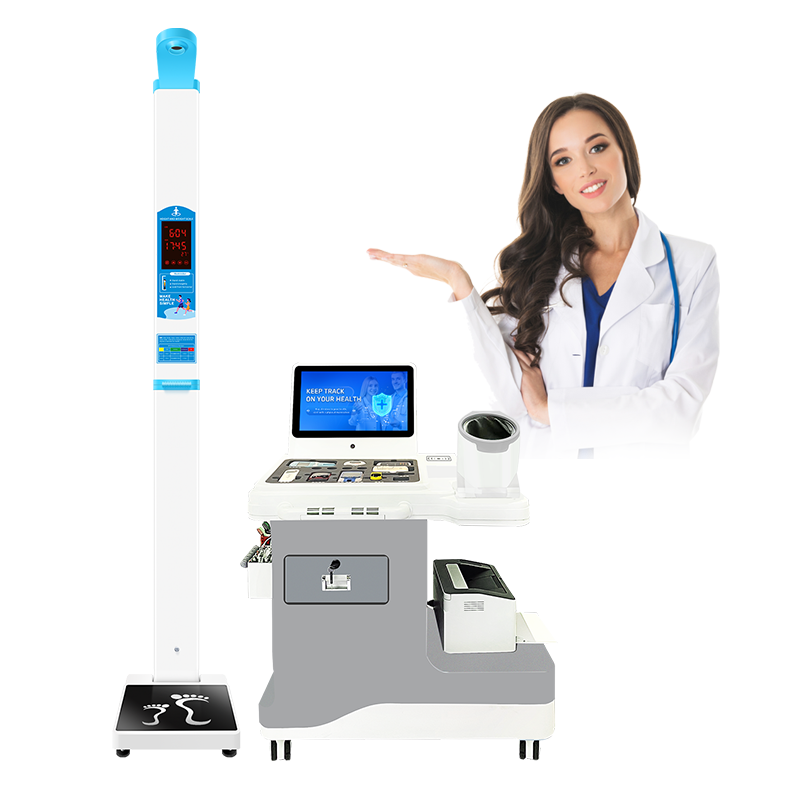

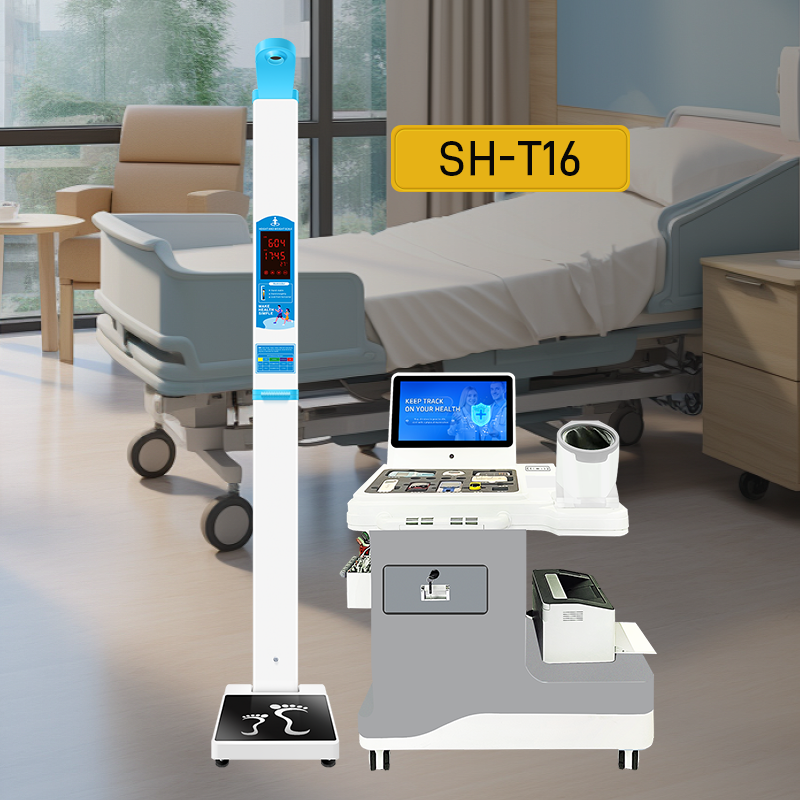

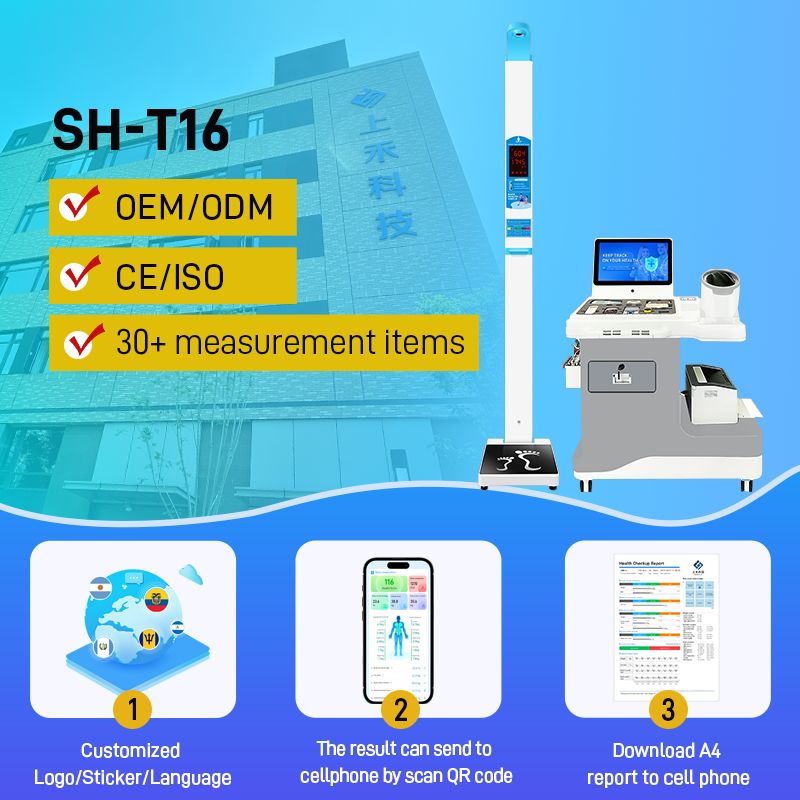

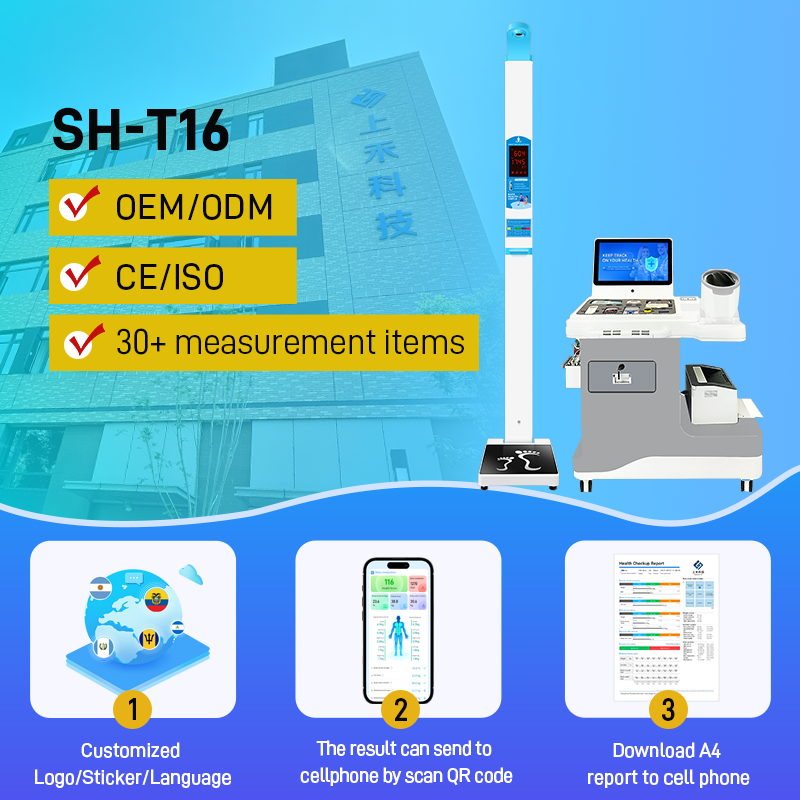

SH-T16 Self Service Health Kiosk Machine
SH-T16 Self Service Health Kiosk Machine
SH-T16 Self Service Health Kiosk Machine SH-T16 Self Service Health Kiosk Machine SH-T16 Self Service Health Kiosk Machine SH-T16 Self Service Health Kiosk Machine SH-T16 Self Service Health Kiosk Machine SH-T16 Self Service Health Kiosk Machine

SH-T16 Self Service Health Kiosk Machine

Datos del producto:
Lugar de origen: Henan, China
Nombre de la marca: SHANGHE
Certificación: CE/ISO13485/OMIL
Número de modelo: SH-T16
Documento: SH-T16.pdf
Pago y Envío Términos:
Cantidad de orden mínima: 1 set
Precio: 4590usd
Detalles de empaquetado: 95 cm * 74 cm * 135 cm; 125*31*32cm; 46*57*20cm;
Tiempo de entrega: 5-15 días hábiles
Condiciones de pago: T/T, MoneyGram, Western Union, D/P, D/A, L/C
Capacidad de la fuente: 6000 conjuntos por mes
Contactar ahora
  • Información detallada
  • Descripción de producto

Información detallada
Nombre del producto: Máquina de quiosco de salud de autoservicio SH-T16 Palabra clave: Máquina de quiosco de salud
Certificado: CE/ISO13485/OMIL Transferencia de datos: Estándar: RS232, WiFi; Opcional: Bluetooth, 3G / 4G, RJ45
Material: Gabinete del metal Personalizado: Lenguaje/logotipo/autoadhesivo/color
Idioma: Soporta 17 idiomas, incluyendo inglés, y permite cambiar de idioma libremente Voltaje de la fuente de alimentación: AC160V-250V, 50HZ
Dimensión: 680*780*1140 mm; 480*370*2300 mm; Embalaje: 95 cm * 74 cm * 135 cm; 125*31*32cm; 46*57*20cm;

Descripción de producto

SH-T16 Multifunctional Health Management Machine Allinone Health Checkup Station


Specification:

Model
SH-T16

Height measurement
Measuring range: 20-210cm
Measurement accuracy: ±0.5cm
Division value: ±0.5cm or ±0.1cm adjustable

Weight measurement
Measuring range: 2.0-500kg
Measurement accuracy: ±0.1kg
Division value: ±0.1kg or ±0.01kg adjustable

Blood pressure measurement
Using upper arm Panasonic sphygmomanometer
Blood pressure: 0-299mmHg (0-39.9kpa)  pulse: 40- 180times/min
division value:   ±4mmHg     pulse reading 5%
Fat measurement
Measuring range: 5.0%-75%   division value: 0.1%

Temperature measurement
Body temperature range: 34°C-43°C
measurement error +0.2°C,   resolution: 0.1°C,
measuring distance 1-5CM
Blood oxygen test
Measurement accuracy: in the range of 70% ~ 100%,
measurement error is ±2%,  resolution: 1%
Blood glucose test
Detection range: 20-600mg/dl (1.1-33.3mmol/L)
Urinalysis
14 health indicators including white blood cells, glucose, calcium ions, microalbumin, PH, etc.
Cholesterol test
Detection range: 100-400mg/dI (2059- 10.35mmol/L)
Four tests of blood lipids
Total cholesterol, high density lipoprotein, triglycerides,
low density lipoprotein
ECG test
Standard 12-lead
A4 color report
Color laser printer, high efficiency and large capacity, standard A4 paper printing medical report


Product Description:

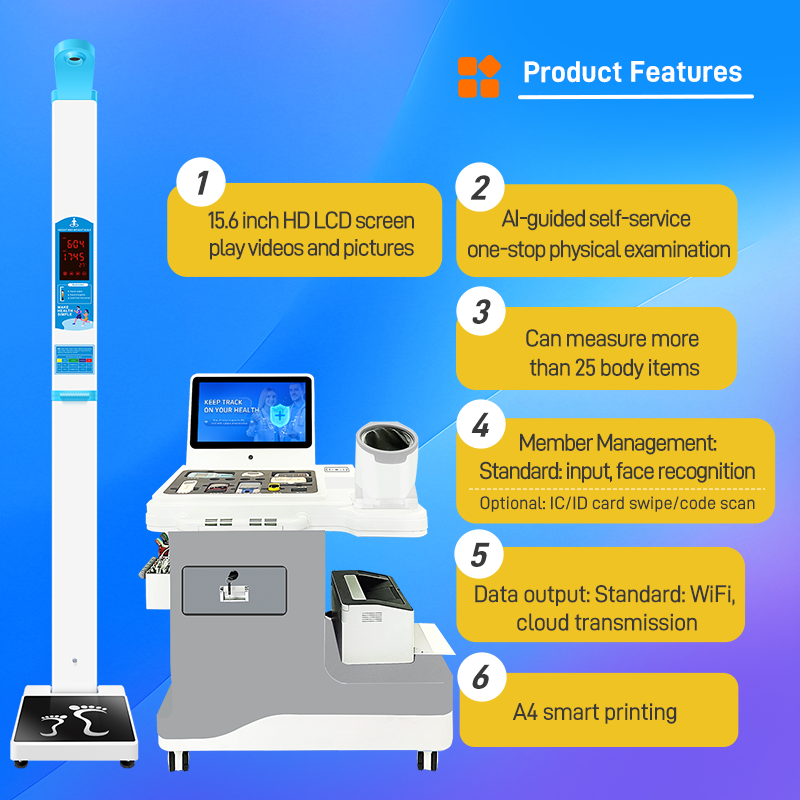

SH-T16 Health Checkup Kiosk Machine Functions:

1.Smart OS operating system

2.15.6-inch LCD touch screen, displays indoor temperature and current time in standby mode, customize videos and images for brand promotion.

3. Three ways to get the report: ①thermal printer②phone report③download report④A4 report

4.AI robot guides operation, automatic voice broadcast measurement results.

5.Ultrasonic/Millimeter wave technology to measure height (non-touch).

6.Precision balanced beam resistive strain sensor.

7.Supports 17 languages including English, can switch languages freely.

8.Intelligent pressurization technology, oscillometric measurement method

(supports left and right arm)

9.Intelligent recognition: standard: face recognition, user input login;

10.Blood pressure measurement: 0-299mmHg(0kPa-39.9kPa);  Pulse range:40-180 beats/min.

11.Data transfer: RS232 serial port,WiFi (standard); Bluetooth/4G/cloud interface (optional), etc, data can be transmitted to the customer's software, such as HIS/LIS system/APP/PC, etc.

12. Body fat measurement indicators: body fat percentage, body water percentage, muscle mass percentage, basal metabolic rate, inorganic salts, etc.

13.Optional functions:Thailand IC/ID card, QR code, etc.



SH-T16 Self Service Health Kiosk Machine 0

SH-T16 Self Service Health Kiosk Machine 1



Certifications:

SH-T16 Self Service Health Kiosk Machine 2

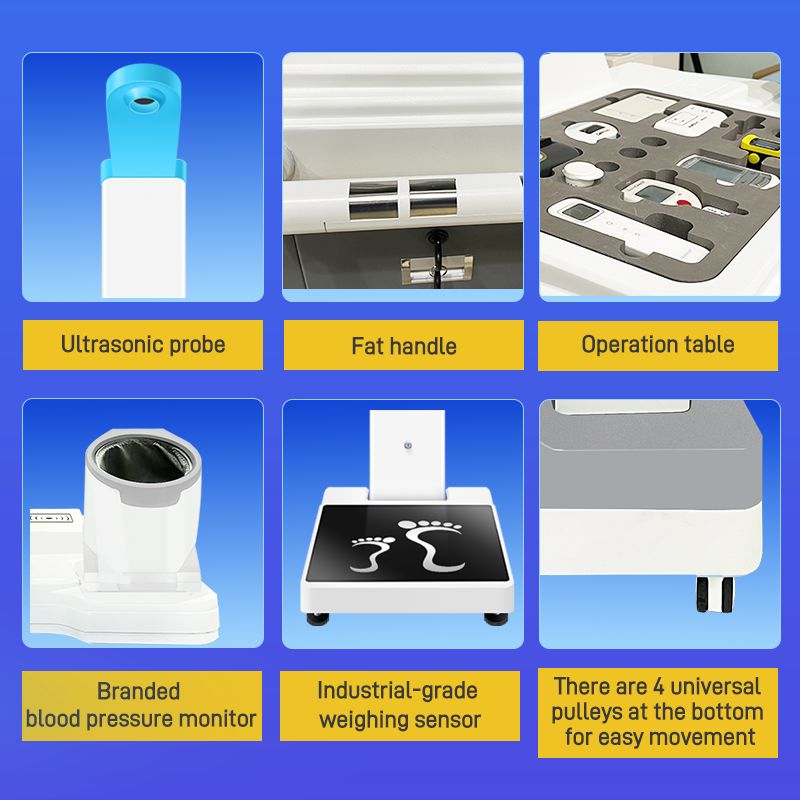

Details Images:

SH-T16 Self Service Health Kiosk Machine 3

SH-T16 Self Service Health Kiosk Machine 4

SH-T16 Self Service Health Kiosk Machine 5

SH-T16 Self Service Health Kiosk Machine 6

Packing & Delivery:

SH-T16 Self Service Health Kiosk Machine 7

SH-T16 Self Service Health Kiosk Machine 8

SH-T16 Self Service Health Kiosk Machine 9

SH-T16 Self Service Health Kiosk Machine 10

Company Profile:

SH-T16 Self Service Health Kiosk Machine 11

SH-T16 Self Service Health Kiosk Machine 12
